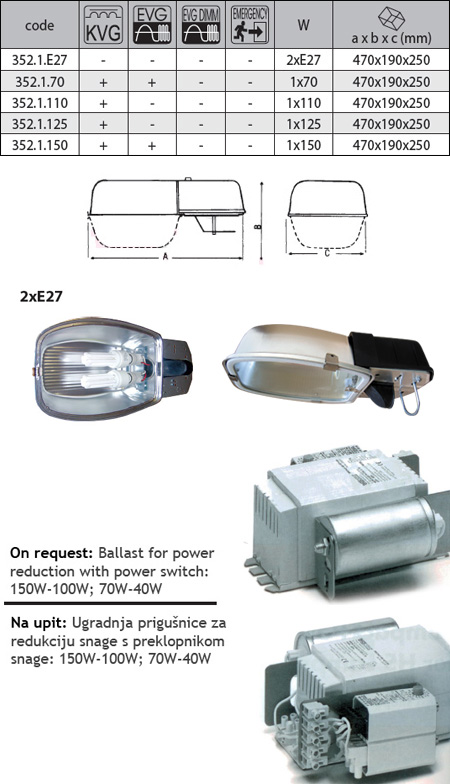

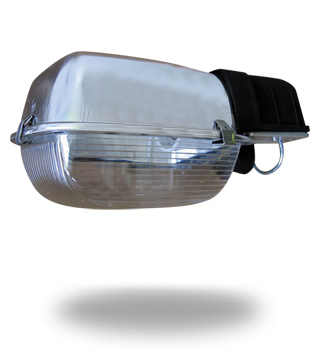

DALMINO: 352.1

Tijelo: Aluminij
Difuzor: Plastični ili ravno staklo
Grlo: BJB,VS, STUCCHI, kabel 0,5 mm otporan do 105 °C
Prigušnica: ELEKTROKOVINA, VS, OSRAM, TRIDONIC, PHILIPS
- magnetska prigušnica (EEI=B2)
- elektronska prigušnica (EEI=B2)
Stupanj zaštite: IP55

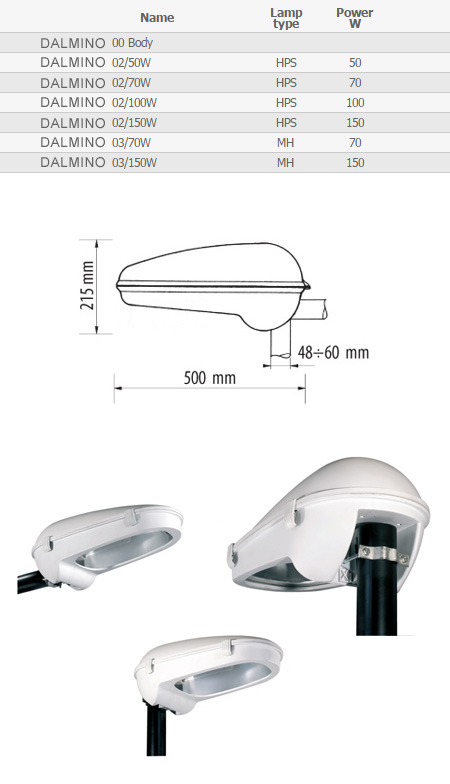

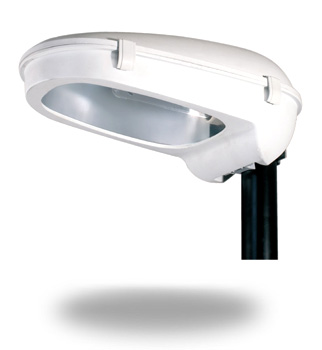

DALMINO: 352.3

Tijelo: Aluminij
Difuzor: Ravno staklo
Grlo: BJB,VS, STUCCHI, kabel 0,5 mm otporan do 105 °C
Prigušnica: ELEKTROKOVINA, VS, OSRAM, TRIDONIC, PHILIPS
- magnetska prigušnica (EEI=B2)
- elektronska prigušnica (EEI=B2)
Stupanj zaštite: IP66/IK10

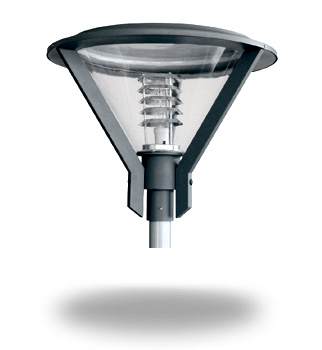

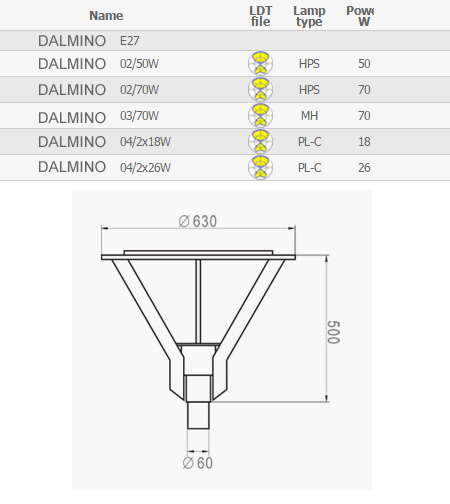

DALMINO: 352.4

Tijelo: Aluminij
Difuzor: Plastični
Grlo: BJB, VS, STUCCHI, kabel 0,5 mm otporan do 105 °C
Prigušnica: ELEKTROKOVINA, VS, OSRAM, TRIDONIC, PHILIPS
- magnetska prigušnica (EEI=B2)
- elektronska prigušnica (EEI=B2)
Stupanj zaštite: IP66/IK10

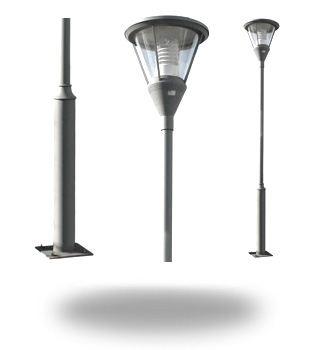

DALMINO: 352.5

Applications
Avenue, Riverside Road, Park, Plaza, Business
Center and High-class Recreational Areas, etc
Specification
Aluminum cast housing, anti-corrosive electrostatic painted;
Steel pole, powder coated after zinc plating;
PMMA Lampshade, UV-stop, High transmission of light;
Aluminum reflector, glare-proo;f
Stainless steel fastening screws;
The gear is built-in the post;
Degree of protection: IP55

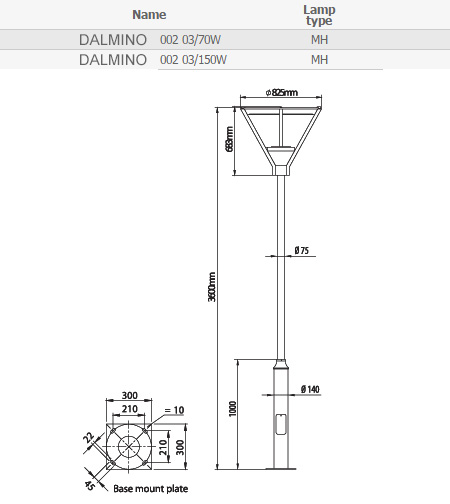

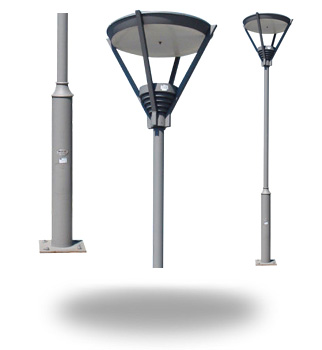

DALMINO: 352.6

Applications
Suit for landscaping road, Plaza, Resident Zone,Park, etc.
Specification
Aluminum cast housing, anti-corrosive electrostatic painted
Steel pole, powder coated after zinc plating
High-purity aluminum reflector
PMMA Lampshade, UV-stop, High transmission of light
Silicon seal, high-temperature endurable and weatherproof
height: 3M-4M
Integrated control gear is built in the post
Degree of protection: IP55

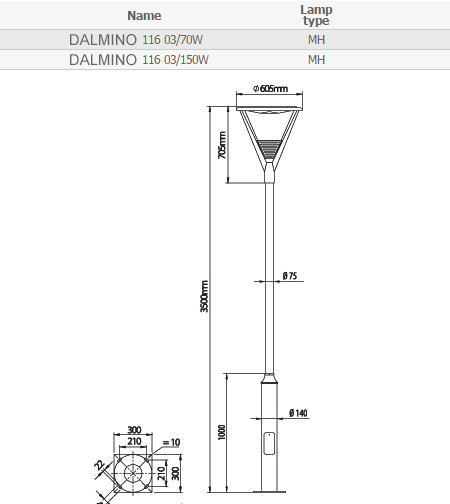

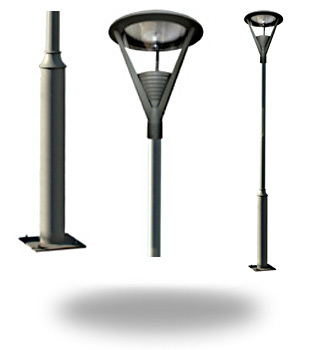

DALMINO: 352.7

Applications
Suit for landscaping road, Plaza, Resident Zone,Park, etc.
Specification
Aluminum cast housing, anti-corrosive electrostatic painted
Steel pole, powder coated after zinc plating
High-purity aluminum reflector
PMMA Lampshade, UV-stop, High transmission of light
Silicon seal, high-temperature endurable and weatherproof
height: 3M-4M
Integrated control gear is built in the post
Degree of protection: IP55

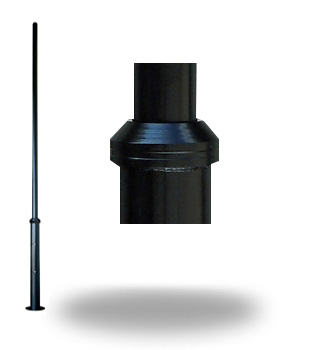

DALMINO: 352.8

"MEX" series are made of steel pipes. Basic color is black, but they can be painted in any color client wants, including old gold and old copper, after extra paid.

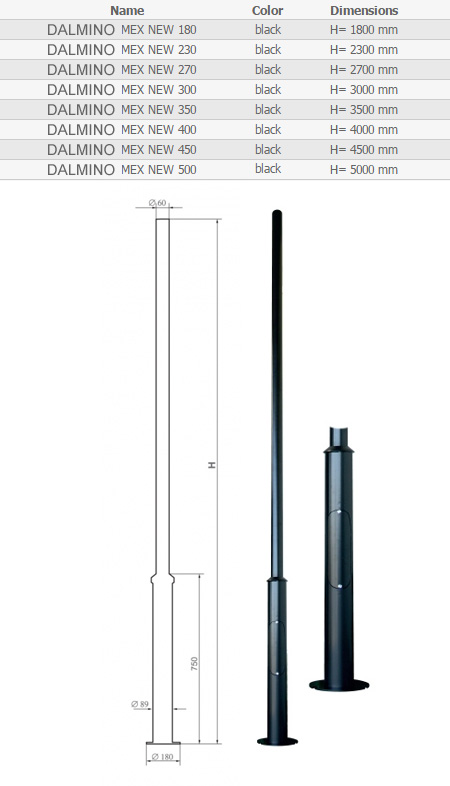

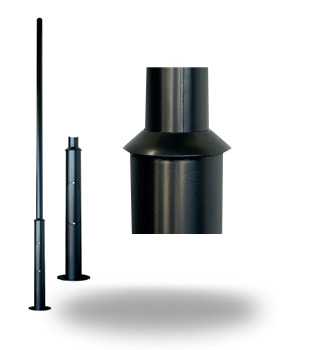

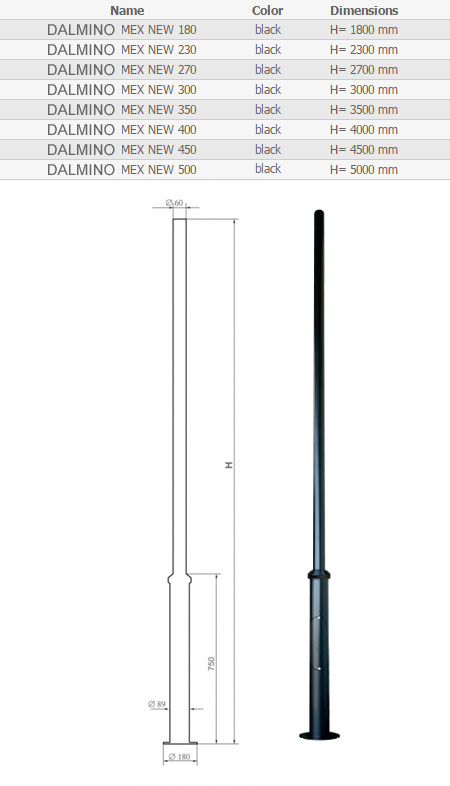

DALMINO: 352.9

"MEX NEW" series are made of steel pipes. Basic color is black, but they can be painted in any color client wants, including old gold and old copper, after extra paid.
