Led Big Panels

Order Code: DALMINO 6025 6000 K / WHITE
Order Code: DALMINO 6024 4500 K / DAYWHITE
Order Code: DALMINO 6028 3000 K / WARMWHITE

  • Wattage: 45W
  • Voltage: AC100-240V
  • Led Chip: SMD 3014
  • CRI: >80
  • PF: >0.9
  • LED Type: COB Reflector, Epistar Chip
  • Beam Angle: 120 °
  • Luminous Flux: 3600 lm
  • Material: Aluminium+PMMA+PS
  • Dimensions:
  • Diameter - 595 x 595 mm
  • Height - 14 mm
  • Driver for panel - 6004/EMC APPROVED/45W

Order Code: DALMINO 6063 4500 K / DAYWHITE

  • Wattage: 45W
  • Voltage: AC100-240V
  • Led Chip: SMD 3014
  • CRI: >80
  • PF: >0.9
  • LED Type: COB Reflector, Epistar Chip
  • Beam Angle: 120 °
  • Luminous Flux: 3600 lm
  • Material: Aluminium+PMMA+PS
  • Dimensions:
  • Diameter - 620 x 620 mm
  • Height - 14 mm
  • Driver for panel - 6019/DIMMABLE/45W

Order Code: DALMINO 6072 6000 K / WHITE
Order Code: DALMINO 6071 4500 K / DAYWHITE
Order Code: DALMINO 6070 3000 K / WARMWHITE

  • Wattage: 45W
  • Voltage: AC100-240V
  • Led Chip: SMD 3014
  • CRI: >80
  • PF: >0.9
  • LED Type: COB Reflector, Epistar Chip
  • Beam Angle: 120 °
  • Luminous Flux: 3600 lm
  • Material: Aluminium+PMMA+PS
  • Dimensions:
  • Diameter - 595 x 595 mm
  • Height - 14 mm
  • Driver for panel - 6029/TRIDONIC/45W

Order Code: DALMINO 6027 6000 K / WHITE
Order Code: DALMINO 6026 4500 K / DAYWHITE
Order Code: DALMINO 6069 3000 K / WARMWHITE

  • Wattage: 45W
  • Voltage: AC100-240V
  • Led Chip: SMD 3014
  • CRI: >80
  • PF: >0.9
  • LED Type: COB Reflector, Epistar Chip
  • Beam Angle: 120 °
  • Luminous Flux: 3200 lm
  • Material: Aluminium+PMMA+PS
  • Dimensions:
  • Diameter - 1195 x 295 mm
  • Height - 14 mm
  • Driver for panel - 6047/EMC APPROVED/45W

Order Code: DALMINO 6068 6000 K / WHITE
Order Code: DALMINO 6067 4500 K / DAYWHITE
Order Code: DALMINO 6066 3000 K / WARMWHITE

  • Wattage: 72W
  • Voltage: AC100-240V
  • Led Chip: SMD 2835
  • CRI: >80
  • PF: >0.9
  • LED Type: COB Reflector, Epistar Chip
  • Beam Angle: 120 °
  • Luminous Flux: 5000 lm
  • Material: Aluminium+PMMA+PS
  • Dimensions:
  • Diameter - 1195 x 595 mm
  • Height - 14 mm
  • Driver for panel -

Order Code: DALMINO 6076 6000 K / WHITE
Order Code: DALMINO 6077 4500 K / DAYWHITE

  • Wattage: 72W
  • Voltage: AC100-240V
  • Led Chip: SMD 2835
  • CRI: >80
  • PF: >0.9
  • LED Type: COB Reflector, Epistar Chip
  • Beam Angle: 120 °
  • Luminous Flux: 5040 lm
  • Material: Aluminium+PMMA+PS
  • Dimensions:
  • Diameter - 1195 x 595 mm
  • Height - 14 mm
  • Driver for panel -

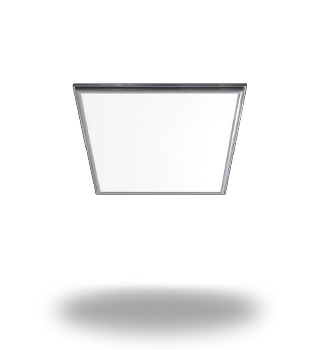

Order Code: DALMINO 6082 6000 K / WHITE
Order Code: DALMINO 6081 4500 K / DAYWHITE
Order Code: DALMINO 6080 3000 K / WARMWHITE

  • Wattage: 20W
  • Voltage: AC100-240V
  • Led Chip: SMD 3014
  • CRI: >80
  • PF: >0.9
  • LED Type: COB Reflector, Epistar Chip
  • Beam Angle: 120 °
  • Luminous Flux: 1500 lm
  • Material: Aluminium+PMMA+PS
  • Dimensions:
  • Diameter - 295 x 295 mm
  • Height - 14 mm
  • Driver for panel -

Order Code: DALMINO 4850 6000 K / WHITE
Order Code: DALMINO 4849 4500 K / DAYWHITE
Order Code: DALMINO 4848 3000 K / WARMWHITE

  • Wattage: 28W
  • Voltage: AC100-240V
  • Led Chip: Samsung 5630
  • CRI: >80
  • PF: >0.8
  • LED Type: COB Reflector, Epistar Chip
  • Beam Angle: 120 °
  • Luminous Flux: 2520 lm
  • Material: Aluminium
  • Dimensions:
  • Diameter - 260 mm
  • Height - 25 mm
  • Driver for panel - 8065/EMC APPROVED/28W

Order Code: DALMINO 6075 6000 K / WHITE
Order Code: DALMINO 6075 4500 K / DAYWHITE
Order Code: DALMINO 6075 3000 K / WARMWHITE

  • Wattage: 36W
  • Voltage: AC100-240V
  • Led Chip: SMD 3014
  • CRI: >80
  • PF: >0.9
  • LED Type: COB Reflector, Epistar Chip
  • Beam Angle: 120 °
  • Luminous Flux: 2700 lm
  • Material: Aluminium+PMMA+PS
  • Dimensions:
  • Diameter - 595 x 595 mm
  • Height - 14 mm
  • Driver for panel - 6049/EMC APPROVED, DIMMABLE/36W
